Horsepower:
          400HP @ 1785 rpm
Dimensions:
         24.5" L X 10’ W X 8’ H
Weight:
         52,600 lbs
Control system:
          Murphy/TECO

KEY HIGHLIGHTS:

  • Optimized cylinder selection maximizes operational flexibility and utilization of engine power
  • Pre-engineered design for expedited delivery and accelerated time-to-market
  • Factory load tested equipment and minimal assembly helps bring your operation online quickly

PACKAGE FEATURES:

  • Scrubbers designed to ASME Section VIII Division 1.
  • Piping designed and tested to ASME B31.3
  • API 5th Edition DA3 pulsation and vibration analysis performed for smooth operation
  • Murphy Centurion Panel
  • Rugged four-runner I-beam skid with environmental containment
  • Hot gas bypass on after-cooler section
  • Inlet spool piece with basket strainer
  • Suction or Discharge based speed control
  • Automatic cooler louvers
  • Electric heat tracing
  • Insulated scrubbers
  • Automatic makeup/recycle valve
cta_image

THE WOLF - PERMIAN BASIN CASE STUDY

High-Pressure Gas Lift (HPGL) delivers strong artificial lift performance without the need for well intervention.  But is it really as effective as ESP gas lift configurations?  We partnered with 111-year-old operating company SM Energy to find out.

Email the Case Study

MOTOR

  • 400HP @1785 RPM
  • 460 Volts
  • Totally Enclosed, Fan Cooled (TEFC)
  • Department of Energy Efficiency Certificate # CC002A

Compressor: ariel jga/4

  • World Standard Compressor backed by Ariel service and support network
  • VVCPs included on 1st, 2nd stages and 3rd stages for maximum operational flexibility
Cylinder Size Pressure
1st Stage Cylinder 7.5" JG 600 psig
1st Stage Cylinder - 2 7.5" JG 600 psig
2nd Stage Cylinder 4.75" JG 865 psig
3rd Stage Cylinder 3.0" JG 2550 psig

COOLER: FORCED DRAFT, HORIZONTAL DISCHARGE

  • Combined compressor lube oil and gas cooling improves service access and eases package maintenance
  • 15°F approach to ambient on aftercooler
  • 60BVVF model with forced draft, horizontal air flow design

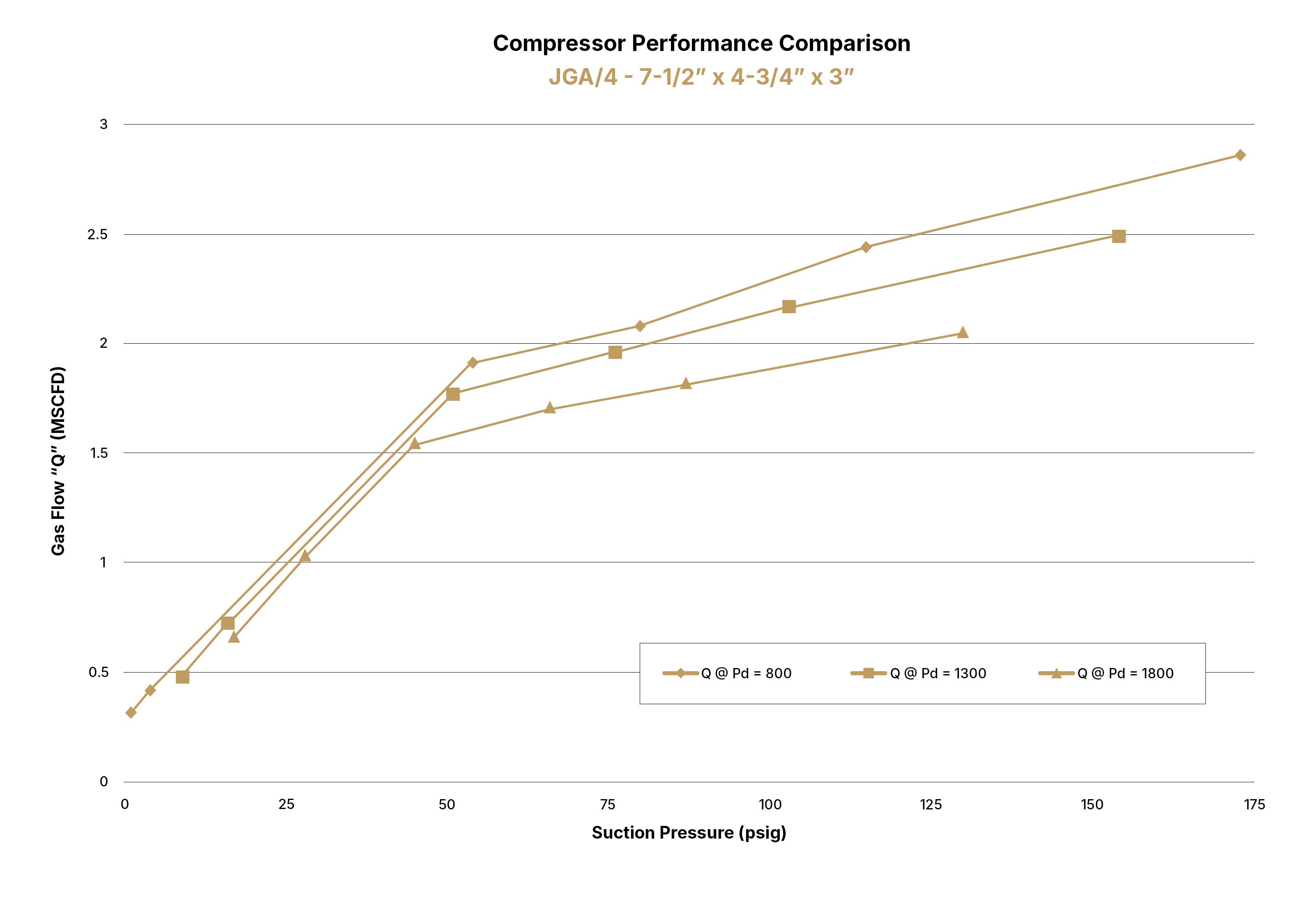

  • Performance: 400HP JGA/4 |

  • MOTOR: TECO-Westinghouse |

  • Compressor: Ariel JGA/4
