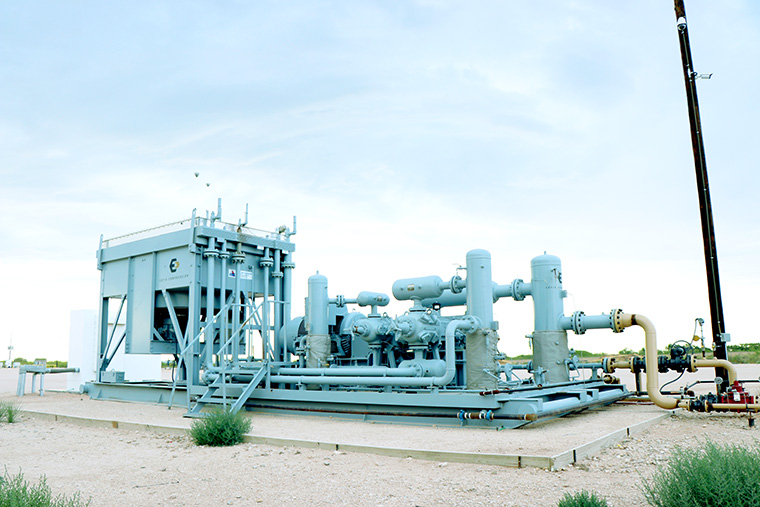

Horsepower:
          700HP @ 1785 rpm
Dimensions:
        34’ L X 13’ W X 11’ H
Weight:
        75,000 lbs
Control system:
          Murphy/TECO

KEY HIGHLIGHTS:

  • Optimized cylinder selection maximizes operational flexibility and utilization of engine power
  • Pre-engineered design for expedited delivery and accelerated time-to-market
  • Factory load tested equipment and minimal assembly helps bring your operation online quickly

PACKAGE FEATURES:

  • Scrubbers designed to ASME Section VIII Division 1.
  • Piping designed and tested to ASME B31.3
  • API 5th Edition DA3 pulsation and vibration analysis performed for smooth operation
  • Murphy Centurion Panel
  • Rugged four-runner I-beam skid with environmental containment
  • Hot gas bypass on after-cooler section
  • Inlet spool piece with basket strainer
  • Suction or Discharge based speed control
  • Automatic cooler louvers
  • Electric heat tracing
  • Insulated scrubbers
  • Automatic makeup/recycle valve
cta_image

THE WOLF - PERMIAN BASIN CASE STUDY

High-Pressure Gas Lift (HPGL) delivers strong artificial lift performance without the need for well intervention.  But is it really as effective as ESP gas lift configurations?  We partnered with 111-year-old operating company SM Energy to find out.

Email the Case Study

MOTOR

  • 700HP 1785 RPM
  • 460 Volts
  • Totally Enclosed, Fan Cooled (TEFC)
  • Department of Energy Efficiency Certificate # CC002A

Compressor: ariel jgJ/4

  • World Standard Compressor backed by Ariel service and support network
  • VVCPs included on 1st, 2nd, and 3rd stages for maximum operational flexibility
Cylinder Size Pressure
1st Stage Cylinder (2) 9.75" RJ 635 psig
2nd Stage Cylinder 6.375" RJ 1270 psig
3rd Stage Cylinder 3.875" RJ 3.625 psig

COOLER: FORCED DRAFT, VERTICAL DISCHARGE

  • Combined compressor lube oil and gas cooling improves service access and eases package maintenance
  • 15°F approach to ambient on aftercooler
  • Vertical section design simplifies cooler maintenance
  • Vertical air discharge minimizes noise and hot air recirculation
  • 84BZF model with forced draft, horizontal air flow design

  • Performance: 700HP JGJ/4* |

  • MOTOR: TECO-Westinghouse |

  • Compressor: Ariel JGJ/4
